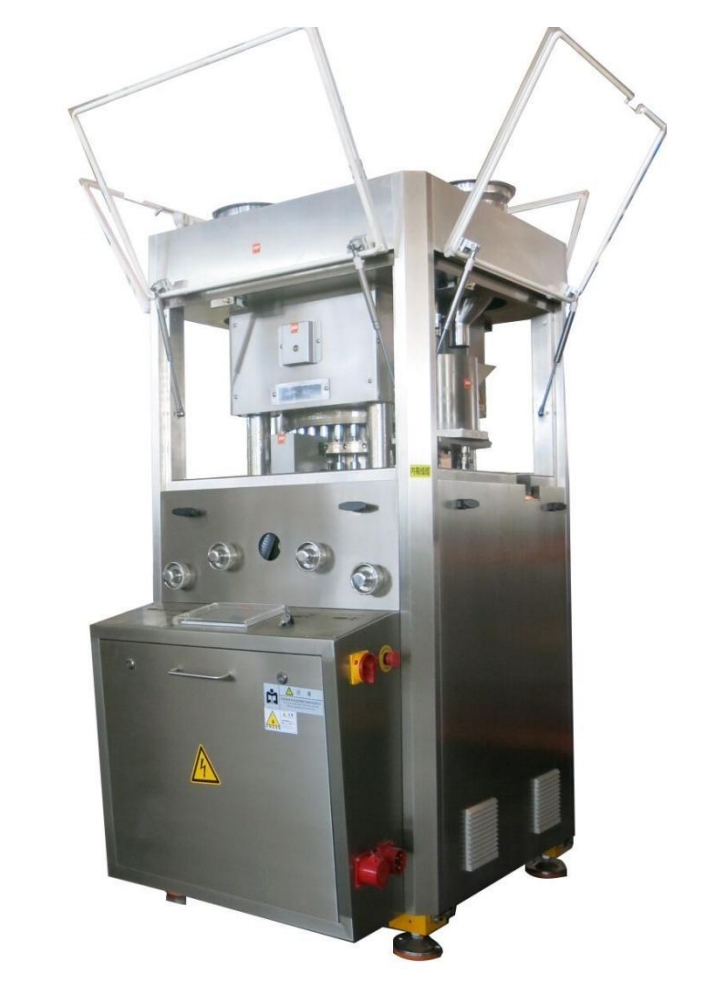

New Model ZPT D-27 Station Double Layer Rotary Tablet Press with Dust Collector

New Model ZPT D-27 Station Double Layer Rotary Tablet Press with Dust Collector
Includes Round Tooling (as per customer specs)
This is a middle speed rotary tablet press. It can make single layer or double layer tablet.
It’s a hot selling machine that can make varies products such as effervescent tablet,
salt tablet, dishwasher tablet, watercolor tablet, herb tablets and medicine pills etc.
Features: •Touch Screen and knobs adjustment for filling depth (tablet weight) and pressure(tablet hardness)
• Whole machine is by SUS304 stainless steel material.
• Fully closed windows keep a safe pressing room.
• With overload protection and safety door.
• Pressing room is complete separated with the driven system to ensure non-pollution.
• Drive system is sealed in turbine box.
• Max.pressure up to 120KN that can handle big and thick tablet.
• Machine is easy to operate and maintenance.

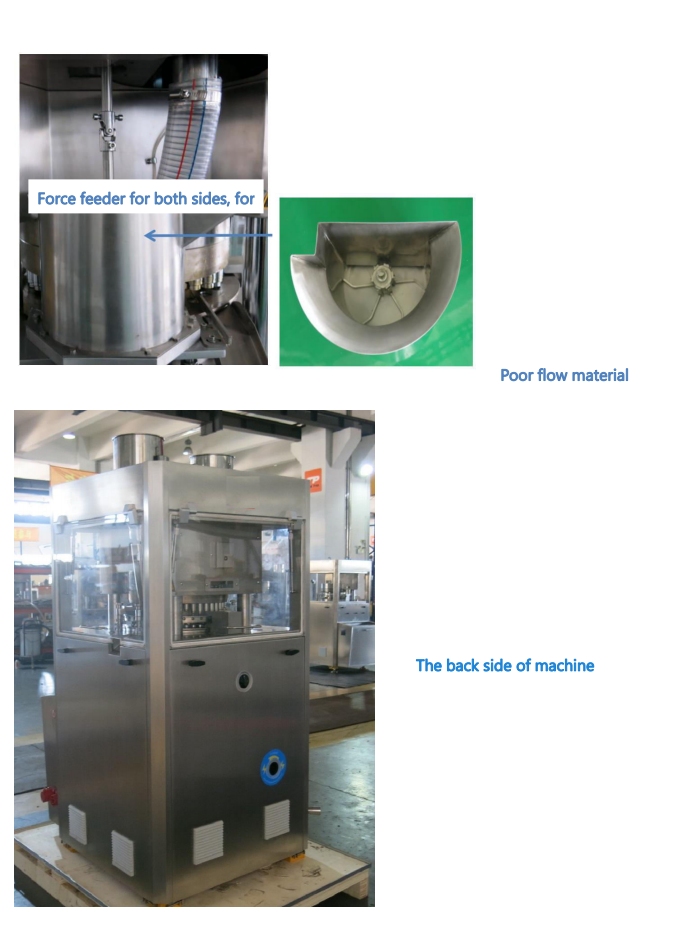

1. Force feeders for both sides for poor flow materials.
2. 2Cr13 stainless steel material for middle turret.
3. Punches material free upgraded to 6CrW2Si, by hard chrome plating.
4. Middle die’s fastening method adopt side way technology.
5. Top and bottom turret made of ductile iron, high-strength that handle thick tablet.
6. Four-columns and double sides with pillars are durable materials made from steel.
7. Punches installed with oil rubber which avoid oil pollution.
8. Free customized service based on customer’s product specification.
9. With automatic lubrication system for thin oil.
10. Can be 24 hours continuously working.
11. Spare parts in stock and all made by us.
12. Force feeder for material with poor fluidity (optional).
Max Pressure(kn) 120
Max Diameter of Tablet (mm) 25
Max Thickness of Tablet (mm) 15
Turret Speed Range: (r/min) 5-25
Tablet output: (pcs/h) 8100-40500
(depending on Size)
Electrics: 3 Phase / 60 Hertz / 220Volts, Motor Power(kw) 5.5, CE
Overall Size (mm) 900*1100*1900, Weight (kg) 1900
Delivery Time: approx. 10-12 Weeks from receipt of 65% Deposit. (balance due prior to shipment from factory)
